    I'm sure more people than just me and RX up there follow this thread. I just post more to give you encouragement and to at least let you know that someone out there in the interwebs is fascinated by the work that you're doing.

  2. #107
    Senior Member
    Join Date
    Jul 2011
    Location
    Out Amongst The Stars
    Posts
    8,860
    i actually read this !! im actually intrigued by your project. im an aspiring prop maker myself and this is a genuine "training course" if you will. lol

  3. #108
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290

    Experimental Silicone Mold (part 2)

    RX-78-2: Glad there's more than 1 on this thread. haha

    thwalker13: I didn't want to come off sounding like I was an attention-getter. I'm not. Just saying that because, even though I write all this up on my blog, I just didn't want to re-post it all on a forum that no one reads. (It is more of a process here too) If I wanted to talk to a wall, I'd talk to my wife. LOL (I know she's reading this)

    Kenyon: Prop maker? Cool. It's so much fun. And very rewarding. To create something out of raw materials. My techniques aren't new or even invented. But, I'd thought I'd still showcase it anyways and show my thought process for the entire project.

    Ok.. back to posting


    De-molding:

    Drum roll please......

    Turn the entire box over. And slowly worked the plasticine off of the bottom. And it worked! The vaseline did its job. And kept the silicone from sticking to the eye lens and the plasticine. AND the walls. So far so good.




    Nice clean removal! The silicone is on the flimsy side though. It could've benefitted from a few more layers. Next time I try this method, I'll have to remember that.



    With some plasticine, I filled in those pour channels again. Making sure there's enough room for the resin to pour though and run through the entire negative space.

    Again, coating the entire surface with Vaseline again. With the trusty cotton swabs. Start to lay on the 2nd half of the mold with silicone again. And, again... a few more days of layering, drying, layering, drying, etc.

    So, I'm STILL not going to jump for joy yet. This hasn't proved to me this was a complete success yet. I'll celebrate when the resin is poured, dried, and comes out perfect without any deformities. Because I'm suspecting the weak silicone mold won't hold its shape. I might have to build a mother mold. Maybe something out of plaster on top of the silicone.

    Again... we'll see in a few days...

  4. #109
    Administrator
    Join Date
    Feb 2012
    Location
    Tennessee
    Posts
    6,827
    I hear ya man. I've been there before. Which is why I'm not a member of very many forums. But, at least 3 of us read your progress. And I'm sure that many more do as well.

  5. #110
    Administrator
    Join Date
    Sep 2010
    Posts
    992
    I've been checking this thread every time there's a new post, I just haven't felt I could add anything is all.

  6. #111
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290
    Quote Originally Posted by Asterisk View Post
    I've been checking this thread every time there's a new post, I just haven't felt I could add anything is all.
    Haha.. thanks. There's no need for everyone to be so shy. I'm very approachable. (not in a creepy way) If you feel there is a particular part of my build that interest you more.. or have questions, I'd be happy to explain it or even post more about it in detail. And like I said in the beginning of the thread, if you have any suggestions to add, if it works out, I might even incorporate it into my design! I'm all about the feedback. That's why I came here. You guys are the experts in the Gundam universe. I'm not. I just like to make things. hehe

  7. #112
    Administrator
    Join Date
    Sep 2010
    Posts
    992
    I'm very fascinated, just not always very chatty. I really like what you're doing on your own, and haven't the slightest clue what to add.

  8. #113
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290

    Mega Sized Decals

    Decals:

    While waiting for things to dry. It really is boring to watch. Thought I'd finish off the final detailing, the decals. Random text, logos, and gibberish that would be littered all over the helmet. Gives it that military vehicle feel that all Gundams have.

    Here's the draft on Photoshop:



    and a trip to Kinko's to have them printed on transparency sticker paper.



    I spent a lot of time cramming as much as I could onto 2 letter sized papers. And it turned out it only costed me $2 a sheet! It's perfect. And it's super thin too, so I hope it will be able to bend over curved surfaces well. If not, I can always coax it with a heat gun! hehe

    And went a little old school with the pencil/paper sketches.



    Designing the torso. A little sneak peak at what I may work on after the helmet. Always thinking ahead!

  9. #114
    Administrator
    Join Date
    Feb 2012
    Location
    Tennessee
    Posts
    6,827
    The decals are looking great man. And the initial design for the torso is looking awesome. Can't wait to see the 1st few stages of it.

  10. #115
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290
    Quote Originally Posted by thwalker13 View Post
    The decals are looking great man. And the initial design for the torso is looking awesome. Can't wait to see the 1st few stages of it.
    Whoa.. you're too far ahead of the game here.

    I'm still working on the head. Still have lots to do! Had a good productive day today.

  11. #116
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290

    Hook Me Up

    Wiring:

    Back on the electric work. Had to figure out how I wanted the switches to turn on/off. And how to wire all of the fans and millions of LEDs.

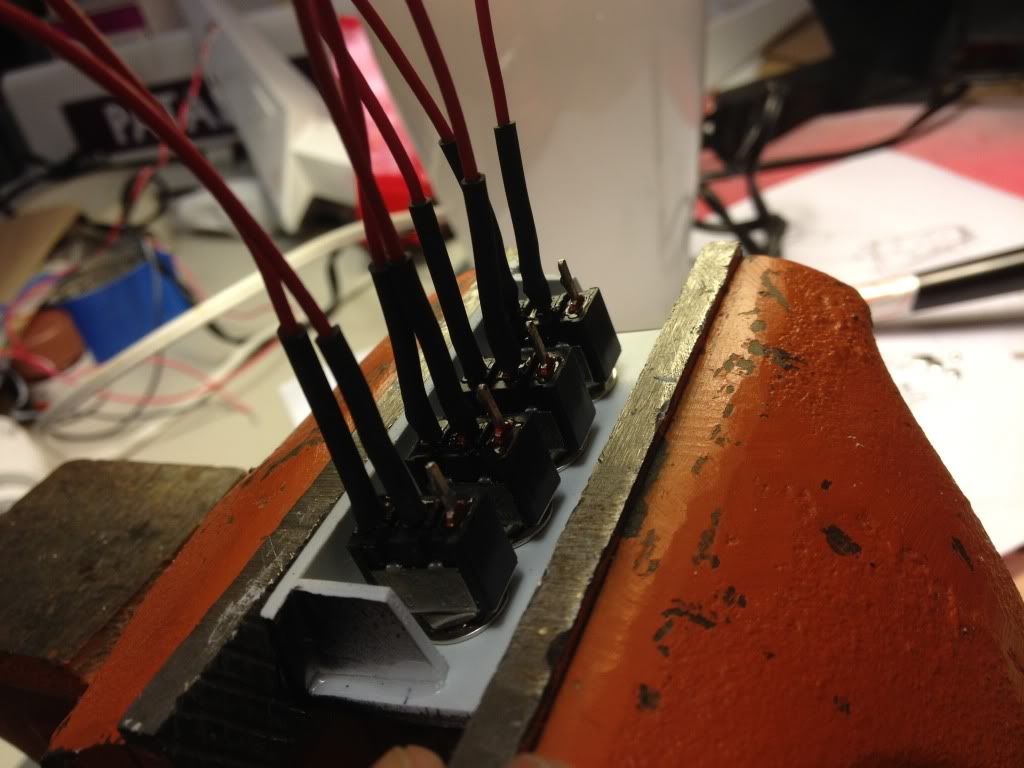

    Use my vice and alligator clip (held in place by a piece of placticine) to help me hold the wires so I can solder them together. Everything is multipurpose! hehe



    Heat shrink wrapped the connections. Not necessary here. I just want to do it right.

    LEDs:

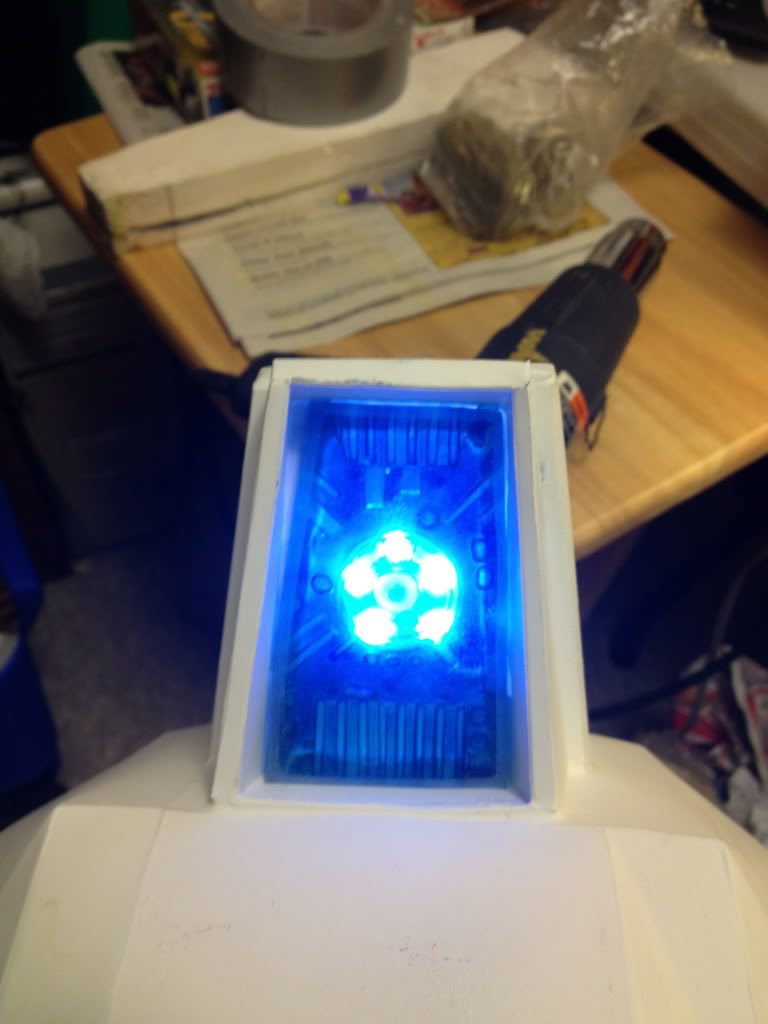

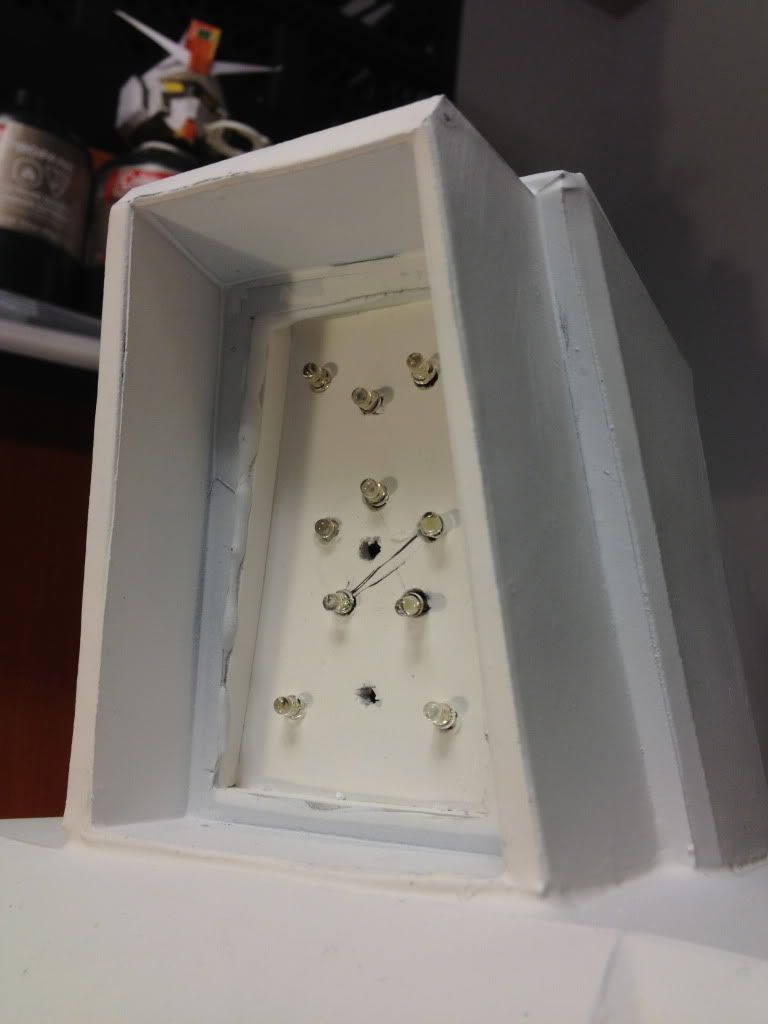

    I had to sample test the LEDs in the mohawk lens. Needed to know how many I would need to make this thing look cool.


    Maybe just a few more.. hehe

    Man, there's so much more electrical work to be done:
    - the fans
    - the machine guns
    - eyes
    - V-fins (still waiting for more LEDs to come in the mail)
    And all these needs to be hooked up with quick release connectors. For easy battery swap outs.
    Last edited by Wiltonican; March 11, 2012 at 3:07 AM.

  12. #117
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290

    Experi-mold: Conclusion

    From the first half of the mold, I knew the second half would come apart without any difficulties.




    Upon closer review, the details are horrendously inconsistent! It picked up some super fine lines here and there. BUT, leaving huge gaps and bubbles everywhere. I guess I could have spent some more time and care applying the first coat of silicone.



    I've already gone this far, might as well go through with it and see how it fares at the resin stage. I attempted to fill in some of the bigger gaps. Then coated both halves with vaseline. Again, this is the releasing agent that will (hopefully) separate the resin from the silicone mold.

    I should break here and explain what those channels are for. The ones I made a few posts back.


    This diagram should explain it a bit better. Once the halves are together, it's difficult for me to make sure the resin gets into every corner. So, the channels are made to 'guide' the resin through. Essentially, making a one-way path for it to travel. The second channel (at the bottom) connects the two lens together. I'll cut it out when it's de-molded. The third channel, the one that's marked "Air out" is for.. well.. the air to escape. If i didn't have this outlet, the air would get trapped, the resin wouldn't be able to displace the air to fill the mold. It's also a good 'window' to use to see when the resin is filling the mold properly. When you see resin come through this hole, you know you're done.


    Test casting next....

  13. #118
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290

    Test casting



    Used the box again for support. I can already feel how unstable the entire hold is at this point. So, I attempted to brace it a bit with some clay here and there.



    The resin pour.



    and....FAIL!!!

    As expected, the resin leaked out of the sides. I doubt this silicone mold would have worked if I built a hard mother mold around it. It's just too flimsy. O well, I anticipate this wasn't going to work from the beginning. It was an experiment after all. Only thing I lost is a bit of time, and $3 for the tube of silicone. That's my price for education.

    Now, I have to start again!

  14. #119
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290

    Hot Glue Sucks

    Hot glue:

    Never said it before, so I'll say it here. I really dislike hot glue. Not a whole lot of positives, but I can name quite a few negatives....

    - takes time for the glue gun to warm up
    - glue gun is awkward to use in tight spaces
    - glue sticks always run out. all the time.
    - MESSY!
    - those spiderweb-like strands with each use. And it's endless!! You just keep pulling and pulling
    - not really a strong bond.
    - dries cloudy



    Obstacle: Here, I globbed some hot glue in the area where I was to place the fan. But, it rolled over into the fan blades!!!! UGH!!! Glued them down. I had to go back in, cutting and re-melting the hot glue to rip the fan unit out. Some more cutting and sanding got the blades free. Hot glue sucks.



    Finally got the fan to work again! Wired up all the LEDs for the eyes too. Here, I'm testing out the switch for it too.

  15. #120
    Senior Member
    Join Date
    Jan 2012
    Location
    In an igloo in canada
    Posts
    290
    This week is going to be bit hard for me update this thread daily. I'll try though.
    I have a few things to sort out both on this project and my life. Both are challenges. Of course, the latter being the bigger one.

    Bring it on!
